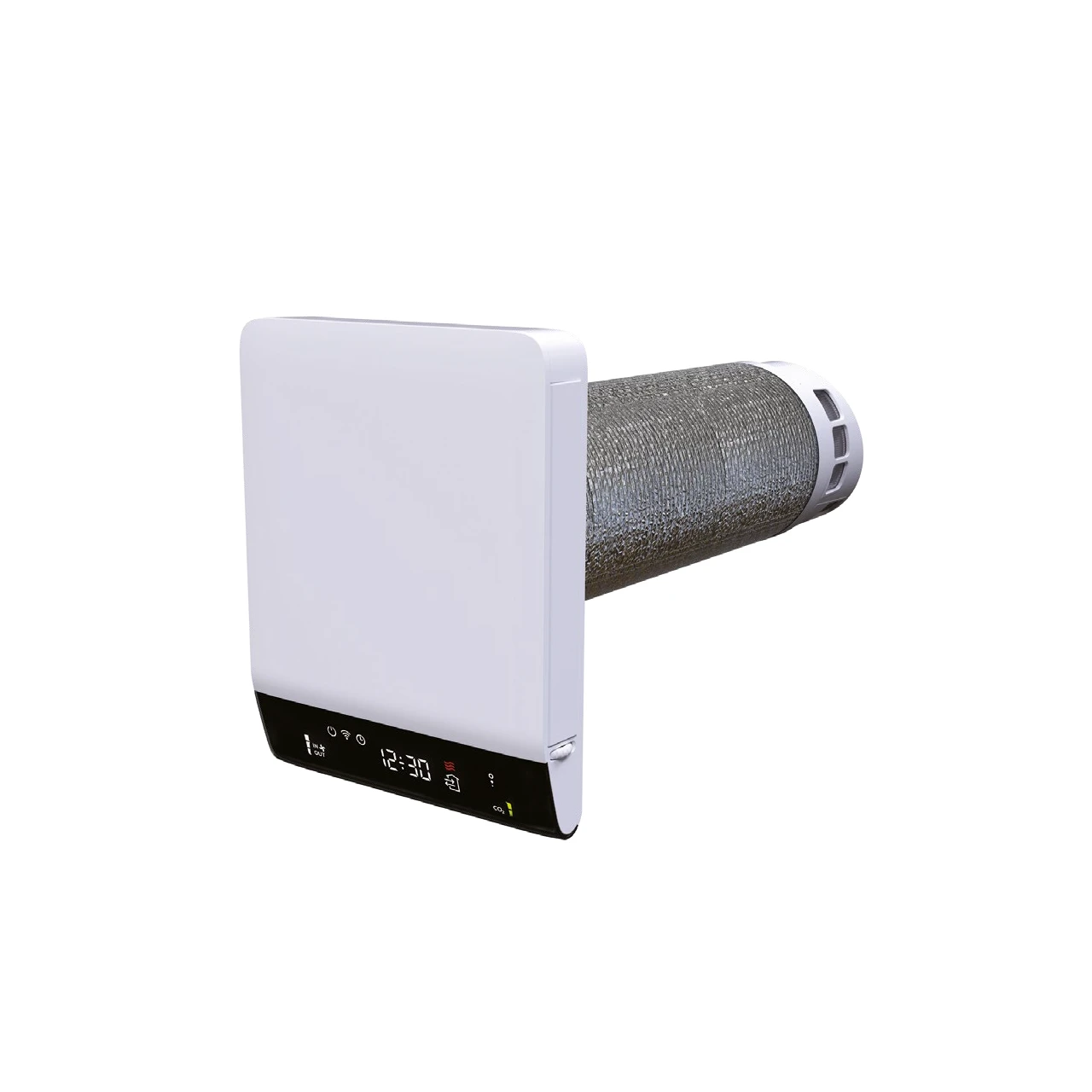

RECOM mini

Product Description

RECOM mini is an advanced decentralized wall-mounted ventilation unit with heat recovery, designed for both residential and commercial spaces. This solution seamlessly integrates air filtration, customizable airflow settings, an electric heater with defrosting capabilities for cold seasons, and a user-friendly interface. Its compact design, complemented by a range of built-in air quality sensors and extensive control features, positions RECOM mini as a top-tier offering on the market, creating an individually controlled microclimate.

Key Features:

• Simultaneous Air Supply and Extract: Unlike cyclical units, the RECOM mini simultaneously supplies fresh air and extracts stale air through a single hole in the outer wall, ensuring continuous and balanced ventilation.
• Patented Copper Heat Exchanger:
  • High Efficiency: A special wavy fin design significantly increases the heat transfer area, achieving up to 88% heat recovery efficiency.
  • Antiseptic Properties: Copper is naturally resistant to the proliferation of fungi and bacteria.
  • Tightness: Automated assembly ensures the heat exchanger is airtight, preventing contamination.
  • Low Air Resistance: The design ensures that fans consume less power and create less noise.
• Built-in Sensors and Automatic Mode:
  • Base version (-E): Has built-in temperature and humidity (RH%) sensors.
  • «Pro» version (-E-VOC): Is supplemented with a CO₂ (Carbon Dioxide) and tVOC (Total Volatile Organic Compounds) sensor.
  • Automatic mode: The unit automatically maintains optimal indoor conditions by utilizing data from the integrated sensors.
• Smart Control: The unit is equipped with a built-in Wi-Fi module. Control is available via a smartphone (Android/iOS) using the RECOM Home app and a cloud service from anywhere in the world. Compatible with "Hey Google".
• Integrated Heater and Frost Protection: The electric heater automatically switches on when the outdoor temperature drops, ensuring a comfortable supply air temperature.
• Efficient EC Fans: Two quiet and economical EC fans with a special impeller design.
• Filtration: Two G3 filters (ISO Coarse >45%) for supply and extract air.

Technical Data (RECOM mini 160-E / 200-E):

• Air Flow: 57 m³/h (up to 70 m³/h in Boost mode) - for 160-E model; 70 m³/h (up to 90 m³/h in Boost mode) - for 200-E model
• Heat Recovery Efficiency: up to 88% (160-E); up to 85% (200-E)
• Max. Power: up to 22 W
• Sound Pressure Level (at 3m): 42 dBA (160-E); 45 dBA (200-E)
• Electric Heater Power: 100 W
• Transported Air Temperature: -30°C to +50°C
• SEC (Seasonal Energy Efficiency Class): A
• Suitable Wall Thickness: from 240 mm to 1000 mm (with optional expansion kits)

Functions:

• 3 speeds with independent adjustment of both supply and exhaust fans from 10% to 100%.
• Automatic mode, fresh air supply only mode, exhaust air removal only mode.
• Integrated sensors: Temperature, humidity, light, CO₂, and tVOC (depending on the model).
• Week schedule, night timer, and turbo timer.
• Filter maintenance indication and alert notifications.

The RECOM mini is a smart, efficient, and stylish solution for ensuring top-quality air and individual comfort in single rooms without complex installation.
