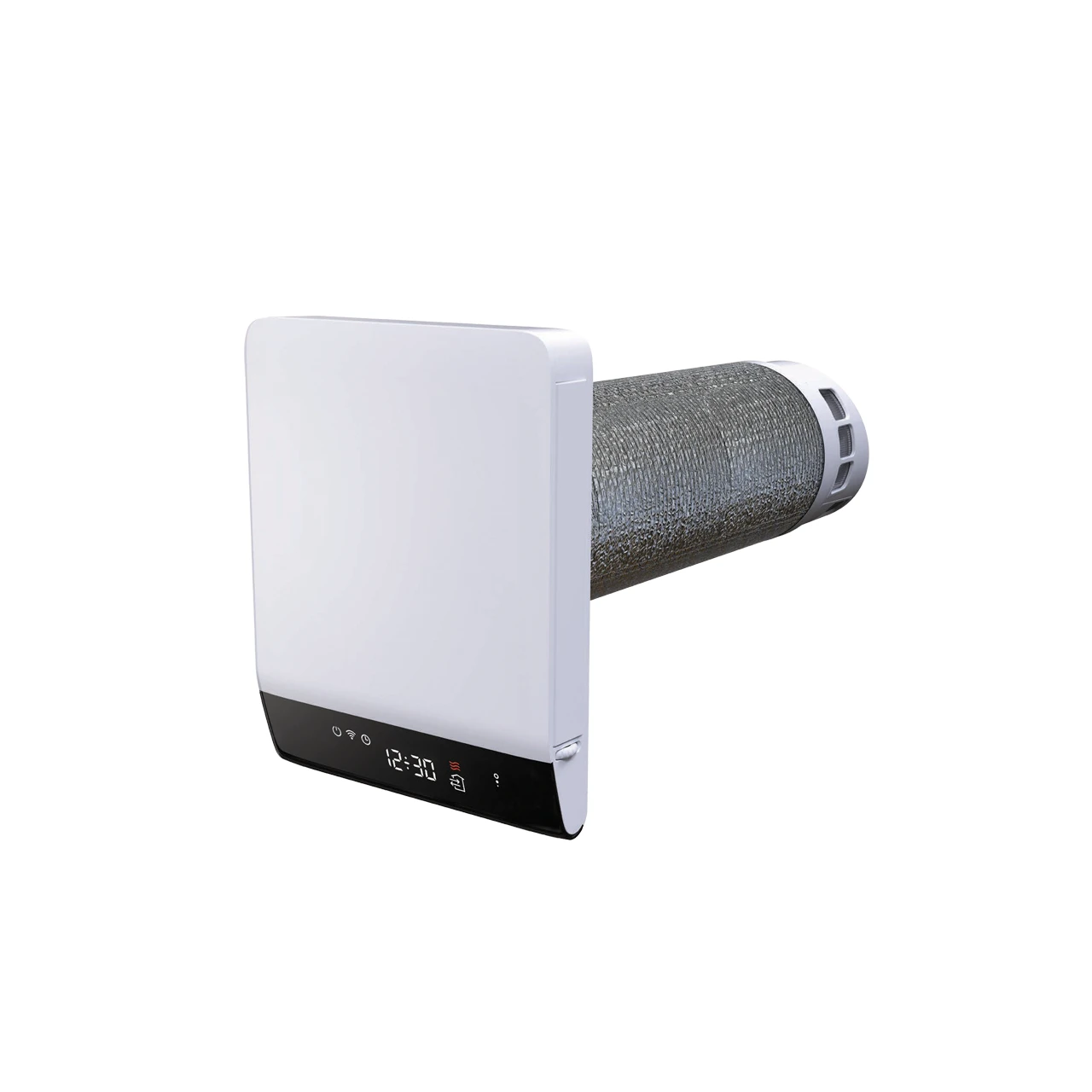

RECOM mini ECO Single-Room Heat Recovery Unit

Product Description

The RECOM mini ECO is a modern, decentralized single-room ventilation unit with heat recovery. It is the ideal solution for ensuring balanced ventilation in flats, cottages, offices, or any space where installing a centralized duct-based ventilation system is not feasible. Thanks to its compact design and through-the-wall installation, the RECOM mini ECO is exceptionally easy to install in both new and renovated buildings. The unit effectively improves indoor air quality while conserving valuable heat (or coolness) and operates with very low noise.

Key Features:

  • Decentralized Ventilation: The unit simultaneously supplies fresh air and extracts stale air through a single hole in the wall, eliminating the need for a complex duct system.
  • Enthalpy Ceramic Heat Exchanger: A highly efficient (up to 92%) regenerative ceramic heat exchanger with a hexagonal cellular structure not only recovers heat but also maintains an optimal indoor humidity level. This is particularly important during the cold and dry winter period. A hydrophilic layer prevents the development of mold and bacteria.
  • Energy-Saving EC Fans: Two separately controlled EC fans ensure balanced ventilation and quiet operation.
  • Smart Control: The unit is controlled via a smartphone (Android or iOS) through a Wi-Fi connection. Control is also possible via a cloud service from anywhere in the world, as well as by voice using Google Assistant.
  • Operating Modes: Heat recovery mode, supply-only mode, extract-only mode, and ventilation mode.
  • Effective Filtration: Both supply and extract air streams are cleaned by G3 class filters (ISO Coarse >50%).
  • Frost Protection: An automatic frost protection system ensures reliable operation of the unit even at low outdoor temperatures.
  • Optional Electric Heater (ECO-E model): A version with a built-in 160 W electric heater is available for additional heating of the supply air.
  • Integrated Sensors: The unit includes a temperature sensor.

Technical Data (RECOM mini ECO / ECO-E):

  • Voltage / Frequency: 220-240 V / 50-60 Hz
  • Max. Air Flow (Supply/Extract mode): 80 m³/h
  • Max. Air Flow (Heat Recovery mode): 48 m³/h
  • Sound Pressure Level (at 3m): from 14 dBA
  • Heat Recovery Efficiency: up to 92% (ECO) / up to 90% (ECO-E)
  • Filters: G3
  • Ingress Protection (IP) Rating: x4
  • SEC (Seasonal Energy Efficiency Class): A
  • Suitable Wall Thickness: from 240 mm to 1000 mm (with optional expansion kits)

Functions:

  • 3 speeds, adjustable from 10% to 100%.
  • Wi-Fi and Google Assistant integration.
  • Temperature, time, and defrost indication.
  • Filter maintenance indication.
  • Night and Turbo timers.
  • Weekly schedule.

The RECOM mini ECO is a smart and efficient choice for ensuring high-quality air and comfort in individual rooms without complex installation.
